Remove item from scene

Share on Twitter Share on Facebook Share on LinkedIn

Remove item from scene

Description

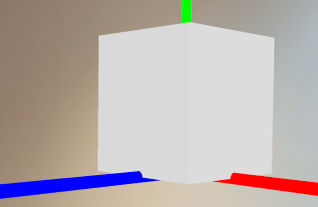

We will add an item to the scene, then remove it when it has been touched.


Video

No video yet


Code

using ARKit;
using Foundation;
using SceneKit;
using System;
using System.Linq;
using UIKit;

namespace XamarinArkitSample
{
    public partial class ViewController : UIViewController
    {
        private readonly ARSCNView sceneView;

        public ViewController(IntPtr handle) : base(handle)
        {
            this.sceneView = new ARSCNView
            {
                AutoenablesDefaultLighting = true,
                DebugOptions = ARSCNDebugOptions.ShowFeaturePoints
                | ARSCNDebugOptions.ShowWorldOrigin
            };

            this.View.AddSubview(this.sceneView);
        }

        public override void ViewDidLoad()
        {
            base.ViewDidLoad();

            this.sceneView.Frame = this.View.Frame;
        }

        public override void ViewDidAppear(bool animated)
        {
            base.ViewDidAppear(animated);

            this.sceneView.Session.Run(new ARWorldTrackingConfiguration
            {
                AutoFocusEnabled = true,
                PlaneDetection = ARPlaneDetection.Horizontal,
                LightEstimationEnabled = true,
                WorldAlignment = ARWorldAlignment.GravityAndHeading
            }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);

            var size = 0.05f;

            var cubeNode = new CubeNode(size, UIColor.White)
            {
                Position = new SCNVector3(0, 0, 0)
            };

            this.sceneView.Scene.RootNode.AddChildNode(cubeNode);
        }

        public override void TouchesEnded(NSSet touches, UIEvent evt)
        {
            base.TouchesEnded(touches, evt);

            if (touches.AnyObject is UITouch touch)
            {
                var point = touch.LocationInView(this.sceneView);

                var hitTestOptions = new SCNHitTestOptions();

                var hits = this.sceneView.HitTest(point, hitTestOptions);
                var hit = hits.FirstOrDefault();

                if (hit == null)
                    return;

                var node = hit.Node;

                if (node == null)
                    return;

                // Lesson - Remove node
                node.RemoveFromParentNode();
            }
        }

        public override void ViewDidDisappear(bool animated)
        {
            base.ViewDidDisappear(animated);

            this.sceneView.Session.Pause();
        }

        public override void DidReceiveMemoryWarning()
        {
            base.DidReceiveMemoryWarning();
        }
    }

    public class CubeNode : SCNNode
    {
        public CubeNode(float size, UIColor color)
        {
            var rootNode = new SCNNode
            {
                Geometry = CreateGeometry(size, color),
                Position = new SCNVector3(0, size / 2, 0)
            };

            AddChildNode(rootNode);
        }

        private static SCNGeometry CreateGeometry(float size, UIColor color)
        {
            var geometry = SCNBox.Create(size, size, size, 0);
            var material = new SCNMaterial();

            material.Diffuse.Contents = color;

            geometry.Materials = new[] { material };

            return geometry;
        }
    }
}

Next Step : Angle nodes with rotation

After you have mastered this you should try Angle nodes with rotation
