Use physics in scene

Description

We will use physics in the scene. i.e gravity.

To do this we add a 2d horizontal plane to the scene and set PhysicsBody = SCNPhysicsBody.CreateKinematicBody().

Then we add 3d cubes at the location the user touches the screen and make it so they mimic gravity using PhysicsBody = SCNPhysicsBody.CreateDynamicBody().

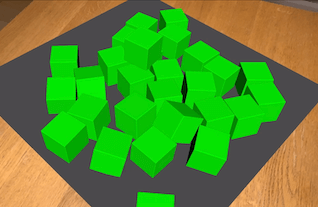

We can see that the cubes are able to fall off the 2d plane.


Video


Code

using ARKit;
using Foundation;
using SceneKit;
using System;
using System.Linq;
using UIKit;

namespace XamarinArkitSample
{
    public partial class ViewController : UIViewController
    {
        private readonly ARSCNView sceneView;

        public ViewController(IntPtr handle) : base(handle)
        {
            this.sceneView = new ARSCNView
            {
                AutoenablesDefaultLighting = true,
                AutomaticallyUpdatesLighting = true
            };

            this.View.AddSubview(this.sceneView);
        }

        public override void ViewDidLoad()
        {
            base.ViewDidLoad();

            this.sceneView.Frame = this.View.Frame;
        }

        public override void ViewDidAppear(bool animated)
        {
            base.ViewDidAppear(animated);

            this.sceneView.Session.Run(new ARWorldTrackingConfiguration
            {
                AutoFocusEnabled = true,
                PlaneDetection = ARPlaneDetection.Horizontal,
                LightEstimationEnabled = true,
                WorldAlignment = ARWorldAlignment.GravityAndHeading
            }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);

            var width = 0.5f;
            var length = 0.5f;

            var planeNode = new PlaneNode(width, length, UIColor.DarkGray);

            this.sceneView.Scene.RootNode.AddChildNode(planeNode);
        }

        public override void TouchesEnded(NSSet touches, UIEvent evt)
        {
            base.TouchesEnded(touches, evt);

            if (touches.AnyObject is UITouch touch)
            {
                var point = touch.LocationInView(this.sceneView);

                var hitTestOptions = new SCNHitTestOptions();

                var hits = this.sceneView.HitTest(point, hitTestOptions);
                var hit = hits.FirstOrDefault();

                if (hit == null)
                    return;

                var node = hit.Node;

                if (node == null)
                    return;

                var cubeNode = new CubeNode(0.05f, UIColor.Green)
                {
                    Position = new SCNVector3(
                        hit.WorldCoordinates.X,
                        hit.WorldCoordinates.Y + 0.1f,
                        hit.WorldCoordinates.Z
                    )
                };

                this.sceneView.Scene.RootNode.AddChildNode(cubeNode);
            }
        }

        public override void ViewDidDisappear(bool animated)
        {
            base.ViewDidDisappear(animated);

            this.sceneView.Session.Pause();
        }

        public override void DidReceiveMemoryWarning()
        {
            base.DidReceiveMemoryWarning();
        }
    }

    public class PlaneNode : SCNNode
    {
        public PlaneNode(float width, float length, UIColor color)
        {
            var rootNode = new SCNNode
            {
                Geometry = CreateGeometry(width, length, color),
                Position = new SCNVector3(0, 0, 0),
                PhysicsBody = SCNPhysicsBody.CreateKinematicBody(),
                EulerAngles = new SCNVector3((float)(-Math.PI / 2), 0, 0)
            };

            AddChildNode(rootNode);
        }

        private static SCNGeometry CreateGeometry(float width, float length, UIColor color)
        {
            var material = new SCNMaterial();
            material.Diffuse.Contents = color;
            material.DoubleSided = true;

            var geometry = SCNPlane.Create(width, length);
            geometry.Materials = new[] { material };
            geometry.CornerRadius = 0.01f;

            return geometry;
        }
    }

    public class CubeNode : SCNNode
    {
        public CubeNode(float size, UIColor color)
        {
            var rootNode = new SCNNode
            {
                Geometry = CreateGeometry(size, color),
                Position = new SCNVector3(0, size / 2, 0),
                PhysicsBody = SCNPhysicsBody.CreateDynamicBody(),
            };

            AddChildNode(rootNode);
        }

        private static SCNGeometry CreateGeometry(float size, UIColor color)
        {
            var material = new SCNMaterial();
            material.Diffuse.Contents = color;

            var geometry = SCNBox.Create(size, size, size, 0);
            geometry.Materials = new[] { material };
            geometry.ChamferRadius = 0.001f;

            return geometry;
        }
    }
}
