Place cube in scene

Description

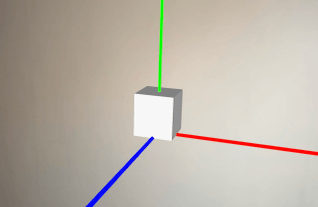

We will place a cube into the scene.

We do this by creating a class that inherits from SCNNode then declaring its size, colour and position before adding it to the scene.

Note, that the position that you provide is relative to the World Origin.


Video

No video yet


Code

using ARKit;
using SceneKit;
using System;
using UIKit;

namespace XamarinArkitSample
{
    public partial class ViewController : UIViewController
    {
        private readonly ARSCNView sceneView;

        public ViewController(IntPtr handle) : base(handle)
        {
            this.sceneView = new ARSCNView
            {
                AutoenablesDefaultLighting = true,
                DebugOptions = ARSCNDebugOptions.ShowWorldOrigin
            };

            this.View.AddSubview(this.sceneView);
        }

        public override void ViewDidLoad()
        {
            base.ViewDidLoad();

            this.sceneView.Frame = this.View.Frame;
        }

        public override void ViewDidAppear(bool animated)
        {
            base.ViewDidAppear(animated);

            this.sceneView.Session.Run(new ARWorldTrackingConfiguration
            {
                AutoFocusEnabled = true,
                PlaneDetection = ARPlaneDetection.Horizontal,
                LightEstimationEnabled = true,
                WorldAlignment = ARWorldAlignment.GravityAndHeading
            }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);

            // Lesson: Add cube to scene
            var size = 0.05f;

            var cubeNode = new CubeNode(size, UIColor.White)
            {
                Position = new SCNVector3(0, 0, 0)
            };

            this.sceneView.Scene.RootNode.AddChildNode(cubeNode);
        }

        public override void ViewDidDisappear(bool animated)
        {
            base.ViewDidDisappear(animated);

            this.sceneView.Session.Pause();
        }

        public override void DidReceiveMemoryWarning()
        {
            base.DidReceiveMemoryWarning();
        }
    }

    public class CubeNode : SCNNode
    {
        public CubeNode(float size, UIColor color)
        {
            var rootNode = new SCNNode
            {
                Geometry = CreateGeometry(size, color),
                Position = new SCNVector3(0, size / 2, 0)
            };

            AddChildNode(rootNode);
        }

        private static SCNGeometry CreateGeometry(float size, UIColor color)
        {
            var material = new SCNMaterial();
            material.Diffuse.Contents = color;

            var geometry = SCNBox.Create(size, size, size, 0);
            geometry.Materials = new[] { material };

            return geometry;
        }
    }
}

Next Step : Place sphere in scene

After you have mastered this you should try Place sphere in scene
