Place button on ui

Description

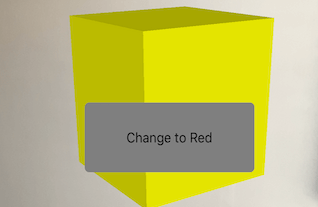

We will place 2D ui buttons on the app screen, whose position will persist and when interactied with will control items in the 3d augmented reality scene.


Video

No video yet


Code

using ARKit;
using CoreGraphics;
using SceneKit;
using System;
using UIKit;

namespace XamarinArkitSample
{
    public partial class ViewController : UIViewController
    {
        private readonly ARSCNView sceneView;

        private SCNNode cubeNode;

        public ViewController(IntPtr handle) : base(handle)
        {
            this.sceneView = new ARSCNView
            {
                AutoenablesDefaultLighting = true,
                DebugOptions = ARSCNDebugOptions.ShowFeaturePoints
                | ARSCNDebugOptions.ShowWorldOrigin
            };

            this.View.AddSubview(this.sceneView);
        }

        public override void ViewDidLoad()
        {
            base.ViewDidLoad();

            this.sceneView.Frame = this.View.Frame;
        }

        public override void ViewDidAppear(bool animated)
        {
            base.ViewDidAppear(animated);

            this.sceneView.Session.Run(new ARWorldTrackingConfiguration
            {
                AutoFocusEnabled = true,
                PlaneDetection = ARPlaneDetection.Horizontal,
                LightEstimationEnabled = true,
                WorldAlignment = ARWorldAlignment.GravityAndHeading
            }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);

            cubeNode = new CubeNode(1f, UIColor.Yellow, new SCNVector3(0, 0, 3f));

            this.sceneView.Scene.RootNode.AddChildNode(cubeNode);

            UIButton myButton = new UIButton(UIButtonType.System);
            myButton.Frame = new CGRect(100, 50, 200, 75);
            myButton.SetTitle("Change to Red", UIControlState.Normal);
            myButton.BackgroundColor = UIColor.Green;
            myButton.Layer.CornerRadius = 5f;
            myButton.TouchUpInside += (sender, e) => {

                var material = new SCNMaterial();
                material.Diffuse.Contents = UIColor.Red;

                cubeNode.ChildNodes[0].Geometry.Materials = new SCNMaterial[] { material };
            };

            this.View.Add(myButton);
        }

        public override void ViewDidDisappear(bool animated)
        {
            base.ViewDidDisappear(animated);

            this.sceneView.Session.Pause();
        }

        public override void DidReceiveMemoryWarning()
        {
            base.DidReceiveMemoryWarning();
        }
    }

    public class CubeNode : SCNNode
    {
        public CubeNode(float size, UIColor color, SCNVector3 position)
        {
            var rootNode = new SCNNode
            {
                Geometry = CreateGeometry(size, color),
                Position = position
            };

            AddChildNode(rootNode);
        }

        private static SCNGeometry CreateGeometry(float size, UIColor color)
        {
            var material = new SCNMaterial();
            material.Diffuse.Contents = color;

            var geometry = SCNBox.Create(size, size, size, 0);
            geometry.Materials = new[] { material };

            return geometry;
        }
    }
}

Next Step : Play sound

After you have mastered this you should try Play sound
